|SOUND ENGINE||[Organ Section] : MTW1 (Modelled Tone Wheel I), Polyphony: 61 (Tone Wheel Organ)|
[Piano/Ensemble Section] : Sampling Sound Engine, Polyphony: 128
[Mono Synth Section] : Analog Modeling Synthesizer, Monophonic
|KEYBOARDS||SK PRO: C1 to C6 61-keys / SK PRO-73: F1 to F7 73-keys, velocity, semi-weighted, Square-front ("Waterfall"-style)|
|ORGAN SECTION||[Parts] : 3 (Upper, Lower, Pedal)|
[Drawbars] : 1 set, 9 pitches
[Voicing] : Upper & Lower: 8 (A-100, B-3, C-3, Mellow, Vx, Farf, Ace, Pipe) Pedal: 3 (Normal, Muted, Pipe)
[Percussion] : Buttons: On, Volume Soft, Decay Fast, Third Harmonic
|PIANO/ENSEMBLE SECTION||Component: 4, LFO: 2|
|MONO SYNTH SECTION||[Oscillator] : 6 types (Duo, Unison, Pulse, Sync, FM, Noise)|
[Filter] : 4 types (LP12, LP24, HP12, HP24), Resonance, Drive
[Modulator] : LFO: 1, EG: 2 (Pitch&Filter, Amplitude
|EFFECTS||[Organ Section] : Vibrato & Chorus, Multi Effect 1, Overdrive, Multi Effect 2, Matching Transformer, Leslie, Equalizer & Tone Control|
[Piano/Ensemble Section] : For each section: Multi Effect 1, Overdrive, Multi Effect 2, Equalizer
[Mono Synth Section] : Multi Effect 1, Overdrive, Multi Effect 2, Equalizer
[Master] : Equalizer, Reverb
|KEY MAP||[Internal zone] : Transpose, Octave, Split, Pedal To Lower, Allocate, Pedal Sustain|
[External Zones] : 3 Zones (assignable to each keyboard)
|CONTROLLERS||Pitch Bend wheel, Modulation wheel, Portamento, Leslie (Bypass, Stop, Fast)|
|MEMORY||[Favorites] : 10 banks x 10 numbers (Combination), 10 numbers (Page)|
[Combination] : Factory: 100, User: 100, Bundle: 100, Manual
[Organ Patch] : Factory: 100, User: 100, Bundle: 100
[Piano/Ensemble Path] : Factory: 300, User: 400
[Mono Synth Patch] : Factory: 100, User: 100, Bundle: 100
[Custom Tone Wheel] : Factory: 4 x 3, User: 4 x 3
[Custom Pedal Registration] : Factory: 3, User: 3
[Custom Pipe] : Factory: 3, User: 3
[Custom Cabinet] : Factory: 8, User: 8
|STORAGE||Internal Memory, USB Flash Drive|

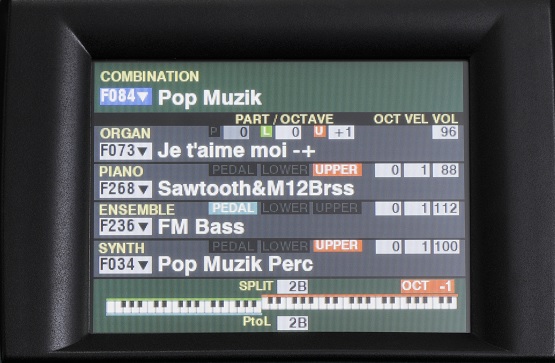

|DISPLAY||320 x 240 pixel|

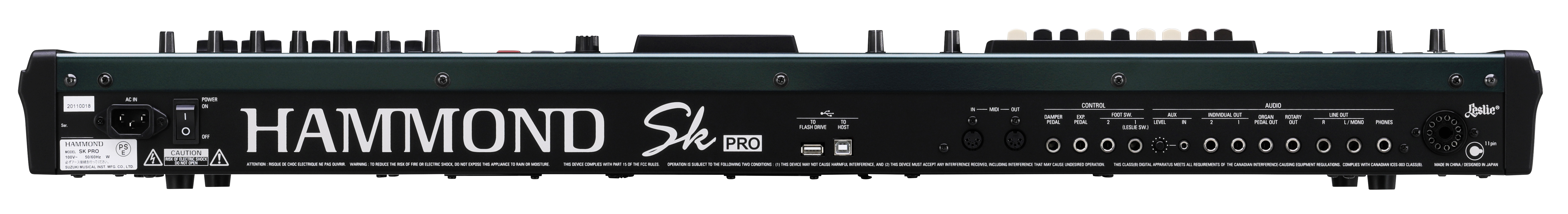

|CONNECTIONS||[MIDI] : IN, OUT|
[USB] : To Host
[Audio] : Line Out L, R, Headphones, Individual 1, 2, Rotary Out, Organ Pedal Out, Aux In (with Volume control)
[Leslie] : 11-pin, 1 and 3 channels available
[Others] : Foot Switch 1, Leslie Switch, Foot Switch 2, Damper Pedal, Expression Pedal
|RATED POWER CONSUMPTION||22W|
|DIMENSIONS||SK PRO: 1004mm(W) x 322mm(D) x 109mm(H) / SK PRO-73: 1170mm(W) x 322mm(D) x 109mm(H)|
|WEIGHT||SK PRO: 9,3 kg / SK PRO-73: 11 kg|

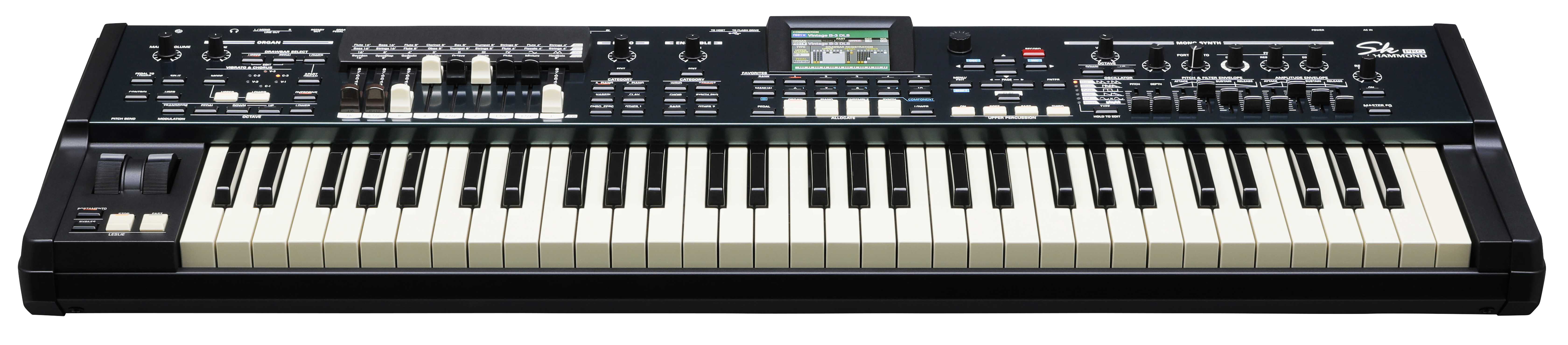

|SK PRO ... in comparison|
|SK PRO||SK PRO-73|
|KEYBOARDS||C1 to C6 61-keys||F1 to F7 73-keys|
|DIMENSIONS||1004mm(W) x 322mm(D) x 109mm(H)||1170mm(W) x 322mm(D) x 109mm(H)|
|WEIGHT||9,3 kg||11 kg|
You can download the images/files below by clicking on the image/icon...
|High-resolution theme-image of SK PRO (6720 x 2345 pixels) 13641KB|
|High-resolution theme-image of SK PRO (6720 x 1479 pixels) 8244KB|
|High-resolution theme-image of SK PRO (6720 x 916 pixels) 4327KB|
|View the introduction-movie of the SK PRO|
|In his demo Pascal Lanslots lets you hear some of the many sounds of the SK PRO...|
|Jim Alfredson explains some of the features of the SK PRO in this introduction movie|
|With the song "Hymne à l' amour" Dirk Van der Linden demos you some more of the nice sounds of the SK PRO... (Vimeo)|
|Brochure SK PRO-keyboards - Medium Resolution (PDF-file 717KB)|
|Owners manual SK PRO English (PDF-file 9028KB)|
|Startup Guide SK PRO English (PDF-file 5961KB)|
|Owners manual SK PRO Dutch (PDF-file 13249KB)|
|Owners manual SK PRO German (PDF-file 25369KB)|
|Owners manual SK PRO French (PDF-file 12599KB)|
|SK PRO Software update Version Release1.6 01/06/2021 main.bin|
This release is the most recent and includes all previous versions, updates and upgrades as well as a detailed description and movie that explains the update-procedure. There is also a and a 'ReadmeE.txt'-file which details all the changes made in this release.
You need to download this update to a USB Flash Drive or to your computer via a USB-cable.
Please note: This update will erase any saved preset data in your organ and restore it to factory presets.
(Zip-file containing 25 + 2 files including instructions skpro_release16.zip-file 512287Kb)
|EXP-20||Expression-pedal for XK-1c & SK-models|
|EXP-50J||Expression-pedal for XK & SK-models|
|XPK-130G||13-note Midi-pedalboard with tone-generator for XK & SK models|
|XPK-200G||20-note Midi-pedalboard with tone-generator for XK & SK models|
|XPK-200GL||20-note Midi-pedalboard with tone-generator and long pedals for XK & SK-models|
|Softbag SKPRO61||Softbag for SK PRO|
|Reset||Reset the instrument to the factory-defaults||Power-off the instrument. Press and hold the red 'RECORD'-button and power-on the instrument. The display will show 'HAMMOND SK PRO Loading Default...' After a few seconds the display will again show the normal play-screen.|
