Specifications | |
SOUND ENGINE | [Organ Section] : MTW1 (Modelled Tone Wheel I), Polyphony: 61 (Tone Wheel Organ) [Piano/Ensemble Section] : Sampling Sound Engine, Polyphony: 128 [Mono Synth Section] : Analog Modeling Synthesizer, Monophonic |

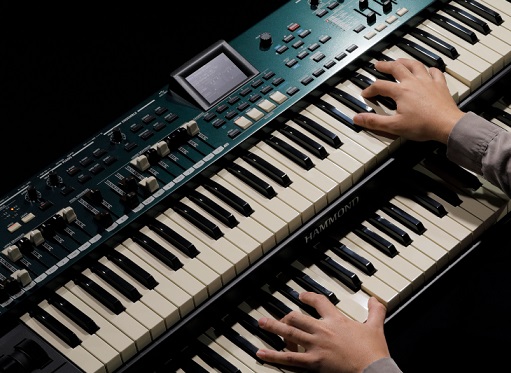

KEYBOARDS | Double manual 2 x 61-key with velocity, semi-weighted, Square-front ("Waterfall"-style) |

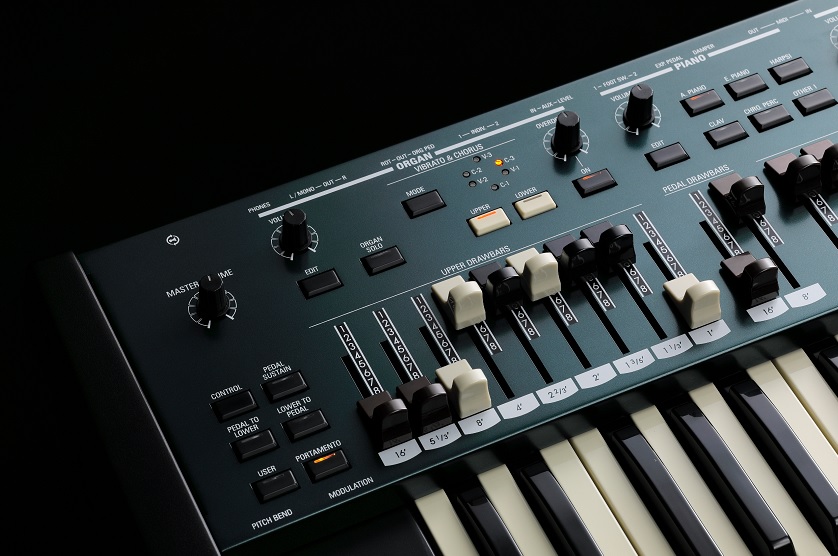

ORGAN SECTION | [Parts] : 3 (Upper, Lower, Pedal) [Drawbars] : Upper9, Lower9, Pedal2 [Voicing] : Upper & Lower: 8 (A-100, B-3, C-3, Mellow, Vx, Farf, Ace, Pipe) Pedal: 3 (Normal, Muted, Pipe) [Percussion] : Buttons: On, Volume Soft, Decay Fast, Third Harmonic |

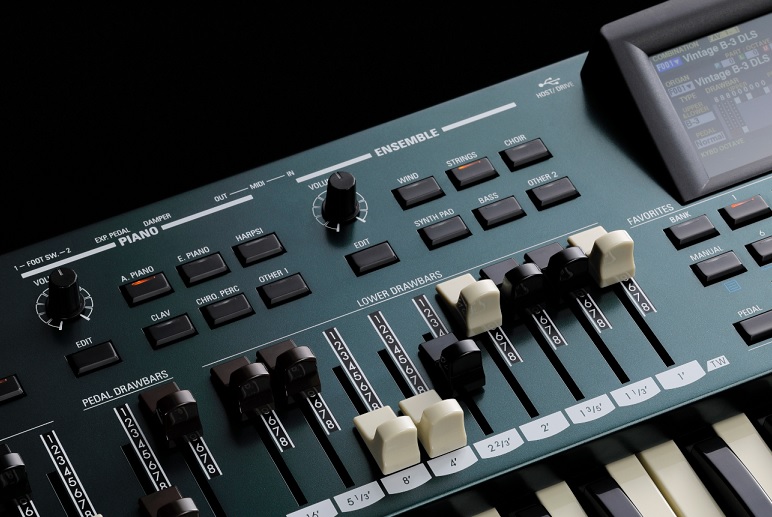

PIANO/ENSEMBLE SECTION | Component: 4, LFO: 2 |

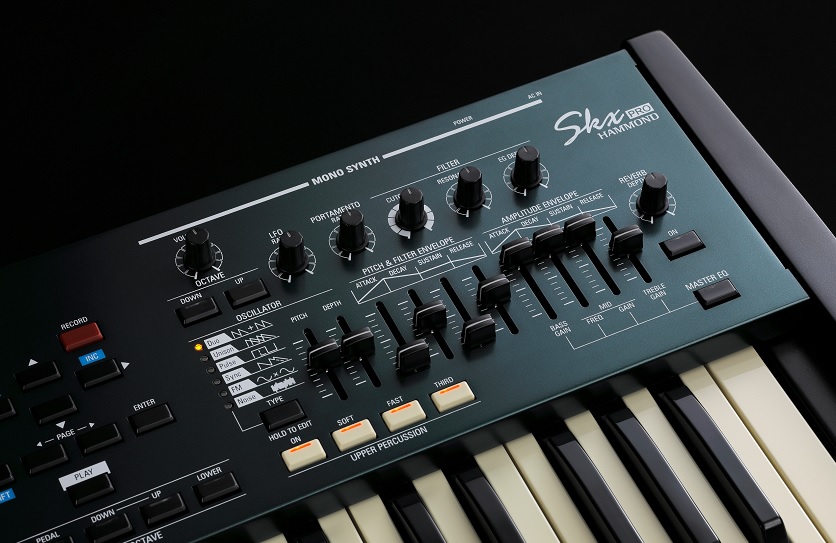

MONO SYNTH SECTION | [Oscillator] : 6 types (Duo, Unison, Pulse, Sync, FM, Noise) [Filter] : 4 types (LP12, LP24, HP12, HP24), Resonance, Drive [Modulator] : LFO: 1, EG: 2 (Pitch&Filter, Amplitude |
EFFECTS | [Organ Section] : Vibrato & Chorus, Multi Effect 1, Overdrive, Multi Effect 2, Matching Transformer, Leslie, Equalizer & Tone Control [Piano/Ensemble Section] : For each section: Multi Effect 1, Overdrive, Multi Effect 2, Equalizer [Mono Synth Section] : Multi Effect 1, Overdrive, Multi Effect 2, Equalizer [Master] : Equalizer, Reverb |
KEY MAP | [Internal zone] : Transpose, Octave, Split, Pedal To Lower, Lower To Pedal, Allocate, Pedal Sustain [External Zones] : 3 Zones (assignable to each keyboard) |
CONTROLLERS | Pitch Bend wheel, Modulation wheel, Portamento, Leslie (Bypass, Stop, Fast) |
MEMORY | [Favorites] : 10 banks x 10 numbers (Combination), 10 numbers (Page) [Combination] : Factory: 100, User: 100, Bundle: 100, Manual [Organ Patch] : Factory: 100, User: 100, Bundle: 100 [Piano/Ensemble Path] : Factory: 300, User: 400 [Mono Synth Patch] : Factory: 100, User: 100, Bundle: 100 [Custom Tone Wheel] : Factory: 4 x 3, User: 4 x 3 [Custom Pedal Registration] : Factory: 3, User: 3 [Custom Pipe] : Factory: 3, User: 3 [Custom Cabinet] : Factory: 8, User: 8 |
STORAGE | Internal Memory, USB Flash Drive |

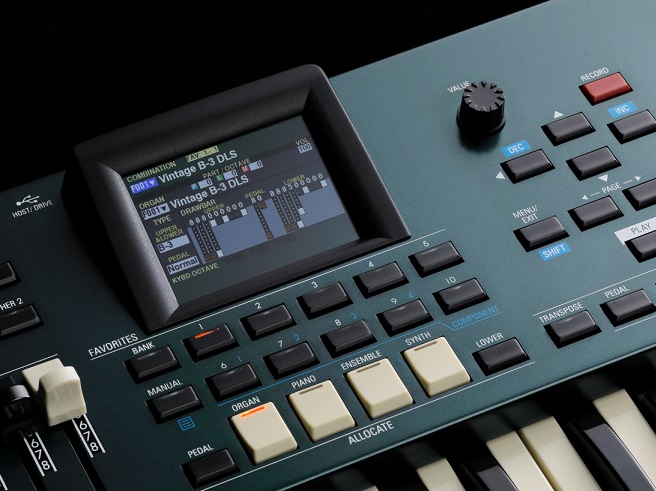

DISPLAY | 320 x 240 pixel |

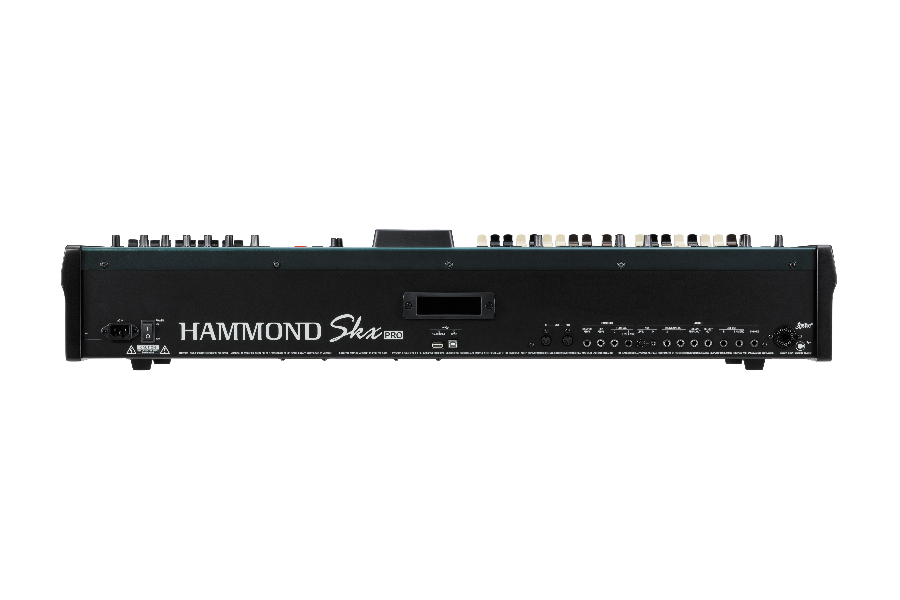

CONNECTIONS | [MIDI] : IN, OUT [USB] : To Host [Audio] : Line Out L, R, Headphones, Individual 1, 2, Rotary Out, Organ Pedal Out, Aux In (with Volume control) [Leslie] : 11-pin, 1 and 3 channels available [Others] : Foot Switch 1, Leslie Switch, Foot Switch 2, Damper Pedal, Expression Pedal |
RATED POWER CONSUMPTION | 22W |
DIMENSIONS | 1002mm(W) x 474mm(D) x 183mm(H) |
WEIGHT | 18,0 kg |
ACCESSORY | AC Cord |
SKX PRO ... in comparison | |||
SK2 | SKX | SKX PRO | |
DRAWBARS | 9 Ptiches, Assignable for Upper, Pedal, Lower | Upper: 9 Pitches, Lower: 9 Pitches, Pedal: 2 Pitches | Upper: 9 Pitches, Lower: 9 Pitches, Pedal: 2 Pitches |
MONO SYNTH | No | No | Yes |
LESLIE-CONNECTION | 8-pin | 11-pin | 11-pin |
WEIGHT | 16,0 kg | 16,9 kg | 18,0 kg |
FS-9H | Footswitch for XK & SK-models / Leslie | ||
EXP-20 | Expression-pedal for XK-1c, XK-4 & SK-models | ||
EXP-50J | Expression-pedal for XK & SK-models | ||
XPK-130G | 13-note Midi-pedalboard with tone-generator for XK & SK models | ||
XPK-200G | 20-note Midi-pedalboard with tone-generator for XK & SK models | ||
XPK-200GL | 20-note Midi-pedalboard with tone-generator and long pedals for XK & SK-models | ||
CU-1 | Leslie Control-switch fast/slow/off | ||
CU-1BK | Leslie Control-switch fast/slow/off in black | ||
Softbag SKX PRO | Softbag for SKX PRO | ||
DCH-SKX PRO | Dust-cover with Hammond-logo for SKX PRO | ||
ST-SKXPRO | Metal stand for SKX PRO | ||
BCH-SKX PRO | Black metal bench for XK-4, SK PRO, SK PRO-73 and SKX PRO | ||
MR-SK(X)PRO | Music-rest for ST-SKPRO and ST-SKXPRO | ||

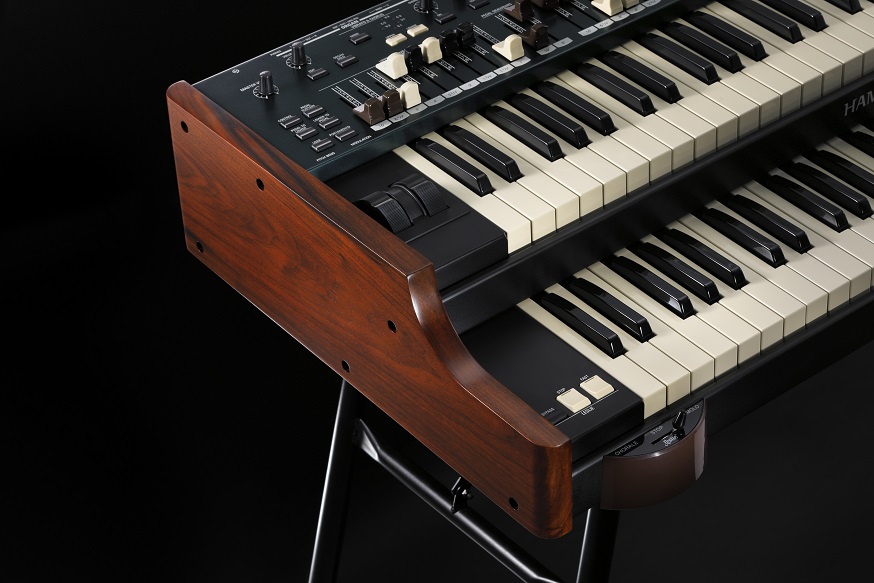

SBW-SKXPRO | Wooden sideboards for SKX PRO |
Support | ||
Type | Description | Action |
Reset | Reset the instrument to the factory-defaults | Power-off the instrument. Press and hold the red 'RECORD'-button and power-on the instrument. The display will show 'HAMMOND SKX Loading Default...' After a few seconds the display will again show the normal play-screen. |
