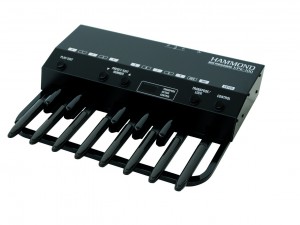

This midi pedal has not only a midi-output, but also 2 inputs, which allow you to hook up 2 different keyboards which will be merged with the pedal-data to the midi-output connector.
You can connect your lower manual (XLK Kit) through the XPK-100 to the upper manual of your XK-5 for instance...

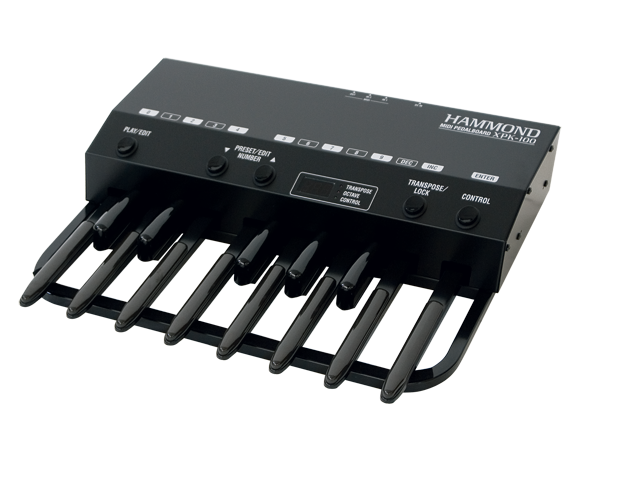

Although the Hammond XPK-100 midi-pedal is usable with any keyboard, the combination with XK-1c or XK-5 (or older models XM-1, XB-1, XB-2, XK-2, XK-3, XK-3c or XE-1) makes for a real great setup
Specifications
13-note pedalboard, fixed velocity
LED display: 7 segments, 3 characters
Controls: PLAY/EDIT, PRESET/EDIT Plus and Minus, TRANSPOSE/LOCK, CONTROL
Terminals: DC power input, MIDI IN 1, MIDI IN 2, MIDI OUT
Accessories: AC power supply, MIDI cable
Weight: 8.5 kg
Dimensions: W 56cm, D 39cm, H 13cm
Appendix A - EDIT Parameter List
Advanced Feature
Values
*E00 PK MIDI Channel
1 > 16
*E01 Transpose
-5 > +6
*E02 Octave
-1 > +4
*E03 Poly/Mono Mode
Poly/Mono
*E04 PK Hold ON/OFF
ON/OFF
*E05 PK Volume
1 > 127
*E06 Fixed Vel. Value
1 > 127
*E07 Control Channel
1 > 16, Pedal
*E08 CONTROL Sw. Func.
*E09 CONTROL Sw. Mode
Alternate/Momentary
*E10 Program Change
OFF, 1 > 128
*E11 Bank Select MSB
0 > 127
*E12 Bank Select LSB
0 > 127
E13 System
Preset Reset, MIDI Merge ON/OFF, MIDI Data Dump
* Data can be saved to a Preset.
Appendix B - Default Preset Settings
Advanced Feature
Default Setting
E00 PK MIDI Channel
3
E01 Transpose
0
E02 Octave
0
E03 Octave
Mono
E04 PK Hold ON/OFF
OFF
E05 PK Volume
127
E06 Fixed Vel. Value
100
E07 Control Channel
1
E08 CONTROL Sw. Func.
Pedal Sustain LONG
E09 CONTROL Sw. Mode
Alternate
E10 Program Change
Same as Preset Number
E11 Bank Select MSB
0
E12 Bank Select LSB
0
E13 System
Reset
Appendix C - MIDI Implementation Chart
FUNCTION
TRANSMITTED
RECOGNIZED
REMARKS
Basic Channel
Default
1-16 *1
1 *2
*1 PK = 3, Control=l *2 When MIDI Merge is OFF
Changed
********
********
Mode
Default
Mode 3
Mode 3
Changed
X
X
Altered
********
********
Note Number
24-96 *3
X
*3 Normal octave 36-48
True Voice
********
X
Velocity
Note ON
O *4
X
*4 Fixed value
Note OFF
X
X
After Touch
Key's
X
X
Ch's
X
X
Pitch Bend
X
X
Control Change
Bank Select 0,32
O
X
Bank Select
Modulation 1
O
X
Modulation
Data Entry 6,38
O
X
Data Entry
Main Volume 7
O
X
Main Volume
16,17, 18, 19
O
X
General Purpose 1-4
64, 65, 66, 67
O
X
Pedal Switches
91, 92, 93, 94, 95
O
X
Effects 1-5 Depth
96, 97
O
X
INC,DEC
98, 99
O
X
NRPN, LSB, MSB
Program Change
O
O
*5 Preset Select
True
********
1 - 15 *5
System Exclusive
O *6
O *7
System Common
Song Position
X
X
Song Select
X
X
Tune
X
X
System Real Time
Clock
X
X
FAh, FCh, FBh
Commands
O
X
Aux Messages
Local On/Off
X
X
Reset All Controllers
O
X
All Notes Off
O
X
Reset
X
X
Notes
* MIDI IN 2 is SOFT THRU
*6 Transpose Set, NRPN ON, RAM Data OUT
*7 RAM Data IN
Mode 1 : OMNI ON, POLY
Mode 2 : OMNI ON, MONO
Mode 3 : OMNI OFF, POLY
Mode 4 : OMNI OFF, MONO
